Industrial Elevator Control Panel Specification

Operating Voltage
220 Volt (V)

Thickness
1.2 Millimeter (mm)

Panel Type
LIFT CONTROL V3F

Current Rating
40

Rated Operation Voltage
440

Base Material
Mild Steel

Rated Insulation Voltage
1000

Product Type
Industrial Elevator Control Panel

Material
Mild Steel

Surface Finish
Powder Coated

Surface Color
Grey

Rated Voltage
440 Volt (V)

Frequency (MHz)
50 Hertz (HZ)

Warranty
1 Year

Application
Industrial

Industrial Elevator Control Panel Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
2 Pieces Per Day

Delivery Time
7 Days

Main Domestic Market
All India

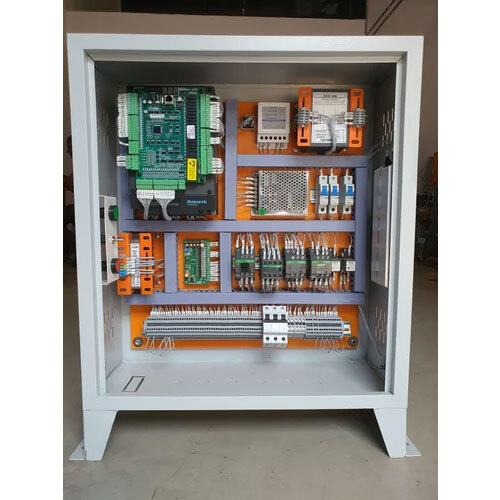

About Industrial Elevator Control Panel

Passenger Elevator Control Panel is an advanced electrical control system designed to manage and regulate the operation of passenger elevators. It controls essential functions such as motor operation, floor selection, acceleration, deceleration, door opening and closing, leveling, and safety interlocks. The panel is engineered for reliable, smooth, and energy-efficient elevator performance with precise floor stopping and optimized travel control.

Key Technical Features:

Microprocessor-based elevator control system
VVVF drive compatibility for smooth acceleration and braking
Automatic floor leveling and positioning
Door open/close control with safety interlocks
Overload and overspeed protection
Emergency stop and fault monitoring functions
Phase failure and voltage protection
Programmable floor and travel parameters
LED/LCD fault indication and diagnostic system
Suitable for multi-floor passenger elevator applications
Robust electrical components for continuous operation
Designed for reliable and low-maintenance performance

The Industrial Elevator Control Panel is highly efficient and designed to meet the demands of industrial applications. Crafted from durable mild steel, it ensures long-term reliability and safety. The panel operates on a rated voltage of 440V and a frequency of 50Hz, providing stable performance. Its operating voltage of 220V allows seamless integration with various systems. The powder-coated grey surface finish provides superior resistance to corrosion and wear, making it ideal for harsh environments. This control panel is engineered to ensure smooth elevator operation and includes a 1-year warranty for peace of mind.
